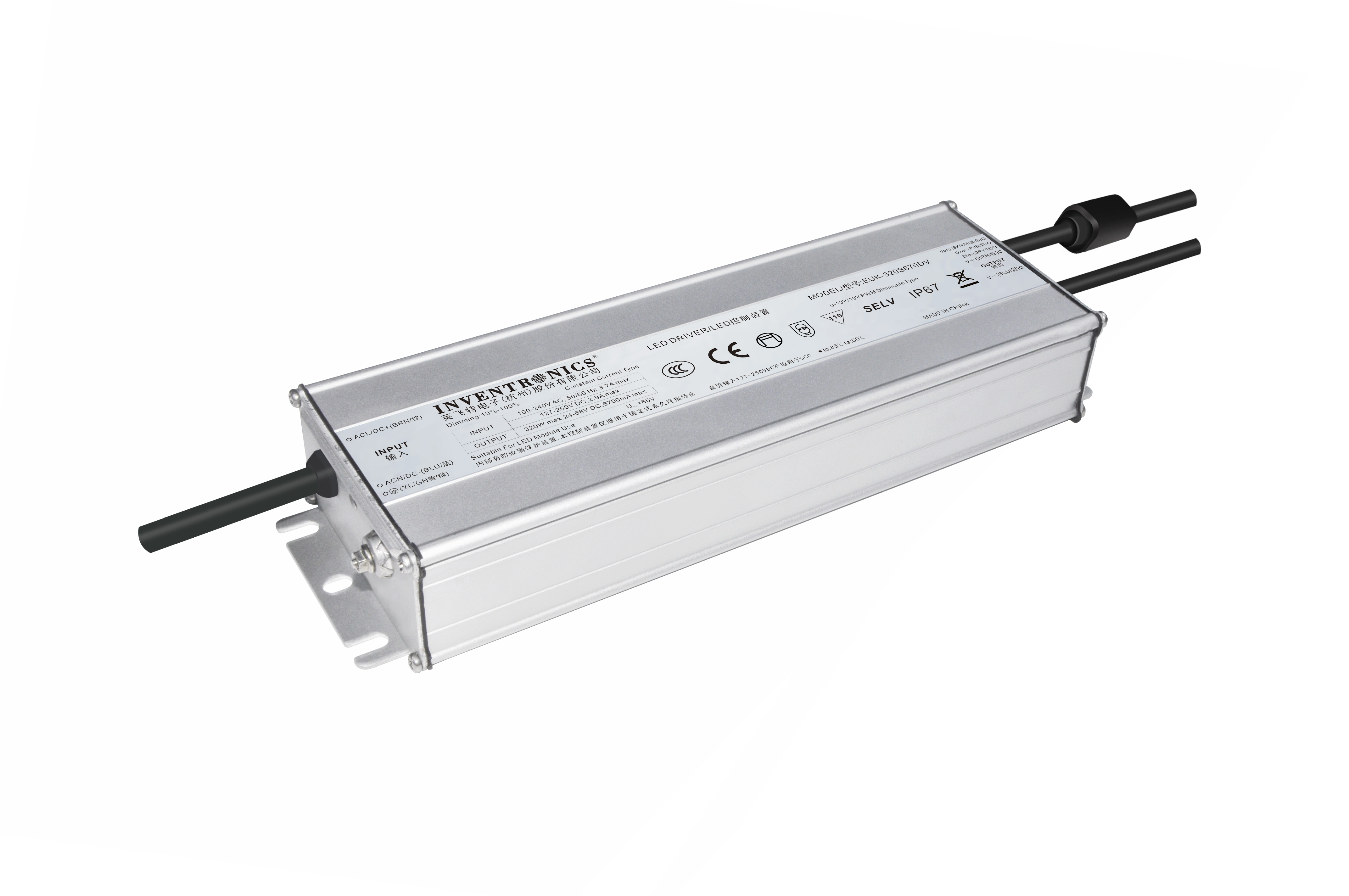

The EUK-320SxxxTV version has been discontinued. We recommend the EUK-320SxxxDV version.
- Ultra High Efficiency (Up to 93.5%)
- Full Power at Wide Output Current Range (Constant Power)
- Isolated 0-10V/10V PWM Dimmable (DV models)
- 3-Timer-Modes Dimmable (TV models)
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP
- IP67
- SELV Output
- 5 Year Warranty
Life Time
86,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
8.82 x 3.15 x 1.57
Millimeters (L x W x H)
224 x 80 x 39.7
Certifications
| Adjustable Output Current Range (mA) | Full Power Current Range (mA) | Default Output Current (mA) | Output Voltage Range (Vdc) | Max. Output Power (W) | Typical Efficiency | Typical Power Factor | Model Number | |
|---|---|---|---|---|---|---|---|---|
| 120Vac | 220Vac | |||||||
| 105 – 1500 | 1050 – 1500 | 1400 | 107 – 305 | 320 | 93.5% | 0.99 | 0.96 | EUK-320S150DV(TV) |
| 154 – 2200 | 1540 – 2200 | 2100 | 73 – 208 | 93.5% | 0.99 | 0.96 | EUK-320S220DV(TV) | |
| 224 – 3200 | 2240 – 3200 | 2800 | 50 – 143 | 92.5% | 0.99 | 0.96 | EUK-320S320DV(TV) | |
| 322 – 4600 | 3220 – 4600 | 4200 | 35 – 100 | 92.5% | 0.99 | 0.96 | EUK-320S460DV(TV) | |
| 469 – 6700 | 4690 – 6700 | 6700 | 24 – 68 | 92.5% | 0.99 | 0.96 | EUK-320S670DV(TV) | |
|
File Name
|
|---|
|
LED Driver Installation Instructions (Updated March 2015)
|
|
LED Driver Installation Guideline (Updated September 2018)
|
|
Programming Interface Operating Instructions (Updated January 2016)
|
|
Constant Power Programmer Manual Instruction (Updated April 2018)
|
