EBV Constant-Voltage Drivers
Hangzhou, China
November 1, 2018
Product News

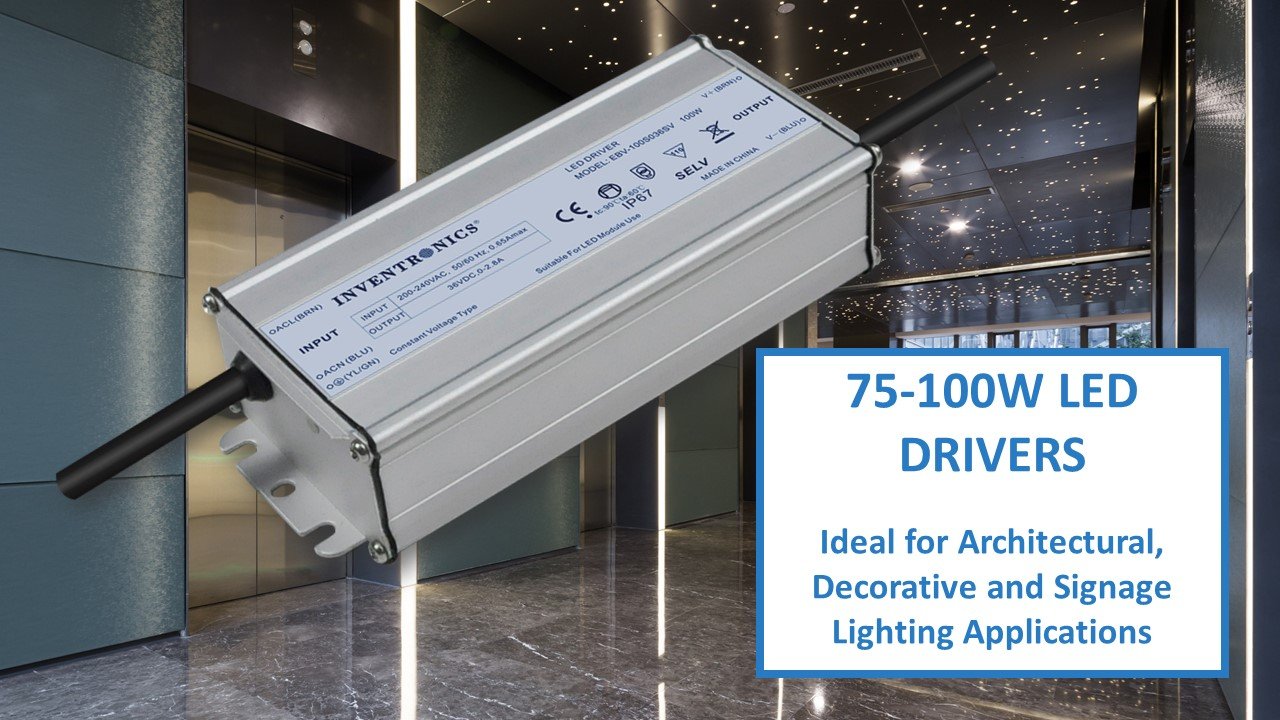

Inventronics is pleased to announce the expansion of their constant-voltage EBV Series to include 75W, 100W and 150W models that operate at a narrow input voltage range from 176-305 Vac. Narrowing the input voltage range has allowed Inventronics to reduce manufacturing costs and offer significant savings to regions that do not require a universal input voltage range. This series of LED drivers are made with a compact, extruded-metal housing enabling more creative freedom on luminaire design. They are IP67 rated which is ideal in architectural, decorative and signage lighting projects.
The EBV-075SxxxSV series provides output voltages of 24V, 36V and 48V and supply up to 75W at output currents from 0-3.2 A with a full-load efficiency up to 90%. The calculated lifetime of these drivers at 70°C case temperature is 97,000 hours.
The EBV-100SxxxSV series provides output voltages of 12V, 24V, 36V and 48V and supply up to 100W at output currents from 0-8.4 A with a full-load efficiency up to 92%. The calculated lifetime of these drivers at 70°C case temperature is 85,000 hours.
The EBV-150SxxxSV series provides output voltages of 12V, 24V, 36V and 48V and supply up to 150W at output currents from 0-10 A with a full-load efficiency up to 91.5%. The calculated lifetime of these drivers at 70°C case temperature is 83,000 hours.
All three EBV Series provide a higher input surge protection with 4kV line-to-line and 6kV line-to-earth and incorporates many added protections such as over-current protection, over-voltage protection, short-circuit protection and over-temperature protection.
The EBV-075SxxxSV, EBV-100SxxxSV and EBV-150SxxxSV is approved to CE, CB, ENEC, CCC, BIS and KS standards. They provide SELV output, are suitable for independent use. This series is not suited to be used in North America due to the narrow input voltage range. Production quantities of these drivers are available now.
