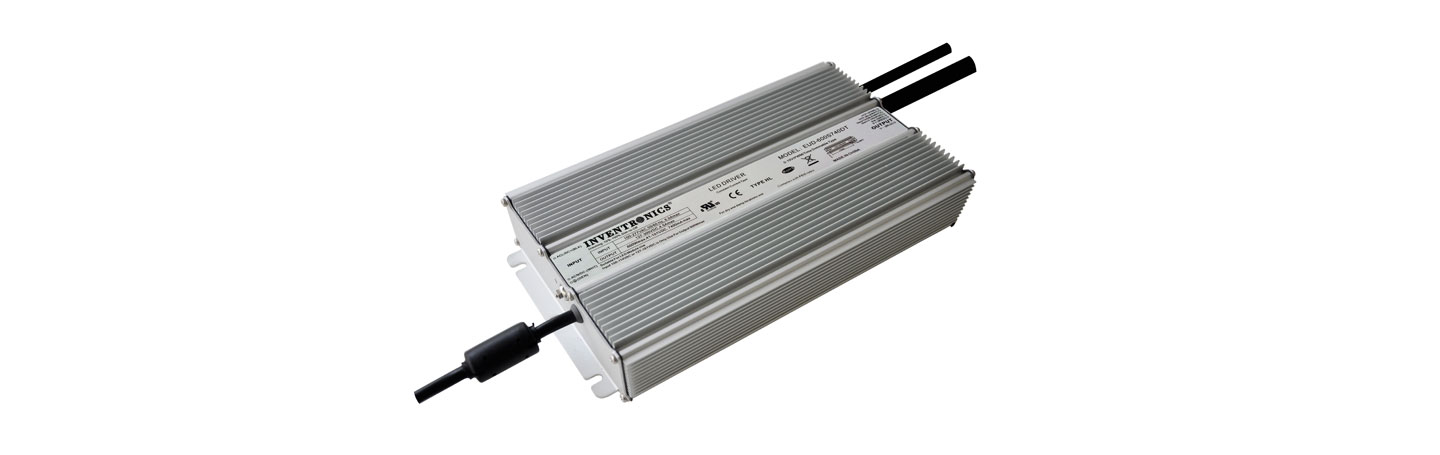

Inventronics has announced the release of a family of 600W programmable constant-current LED drivers to help fill a major gap in the industry. The EUD-600SxxxDT/DV series offers 5 programmable, constant-power models that deliver the full 600W at a wide output current range between 2.24 and 9.80A. All models operate over a 90-305Vac input range with excellent power factor. These drivers are suitable to replace the use of multiple lower wattage drivers reducing cost, minimizing inventory and saving on installation space.
The EUD-600SxxxDT/DV series offers a full load efficiency up to 95% making it a leader in the LED driver industry. They provide a 12V/200mA auxiliary output and dim-to-off capability with ≤ 0.5W standby power consumption, making it ideal for operation with a wide variety of sensors, controls and wireless systems for even greater energy savings. Dimming functionalities include 0-10V, PWM and 3 timer modes making them more versatile than traditional LED drivers.
The EUD-600SxxxDT/DV are IP67 rated, TYPE HL drivers making them a rugged, reliable option for harsh indoor and outdoor lighting applications including sports arena, horticultural, port and high mast lighting. The high efficiency and robust thermal design of these drivers enables them to run cooler, significantly improving reliability and extending product life. The lifetime of these drivers is calculated to be 87,000 hours when operating with a case temperature of 70°C.
To ensure trouble-free operation, the EUD-600SxxxDT/DV product family also features built-in protection for surge, over-voltage, over-temperature and short-circuit events while also including output lumen compensation and thermal sensing for LED modules.
This new series is approved to UL, FCC, CE, and ENEC standards. Production quantities of the EUD-600SxxxDT/DV series are available now.
