Not Recommended for New Design
We Recommend the EBS-040SxxxBT2 as a Replacement
- High Efficiency (Up to 89.5%)
- Full Power at Wide Output Current Range (Constant Power)
- Thermal Sensing and Protection for LED Module
- DALI/AC Dim/Timer Dimmable (3 Timer Modes)
- Dim-to-Off with Standby Power ≤ 0.5 W
- Always-on Auxiliary Power: 12Vdc, 200mA (Transient Peak Current up to 400mA)
- Output Lumen Compensation
- Long Lifetime Over 90K Hours at 75°C Case Temperature
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP,
- IP20 Design and Suitable for Outdoor Applications in Luminaires with IP>54
- SELV Output
- Suitable for Luminaires with Protection Class I and II
- Complies with Zhaga Interface Specification Book 13
- 7 Year Warranty
Life Time
93,000 hours @ Case Temperature 75°C
Dimensions
Inches (L x W x H)
4.85 x 3.12 x 1.30
Millimeters (L x W x H)
123 x 79 x 33
Certifications
| Adjustable Output Current Range |
Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Typical Efficiency |
Typical Power Factor |
Model Number |
|---|---|---|---|---|---|---|---|---|
| 45-700 mA | 450 – 700 mA | 700 mA | 176 ~ 305 Vac 190 ~ 250 Vdc |

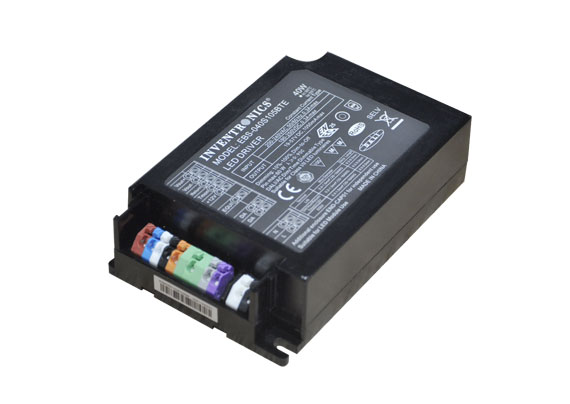

28 – 89 Vdc | 40 W | 89.5% | 0.96 | EBS-040S070BTE |
| 70-1050mA | 700 – 1050 mA | 1050 mA | 19 – 57 Vdc | EBS-040S105BTE |
|
File Name
|
|---|
|
LED Driver Installation Guidelines (Updated September 2018)
|
|
Inventronics DALI Driver Programmer Manual Instruction (Updated November 2016)
|
|
Programming Interface for DALI-Program (Updated May 2015)
|
|
Programming Interface Device Driver Install First (Updated March 2015)
|
|
Design-In Guide for Programmable Drivers (Updated September 2018)
|
