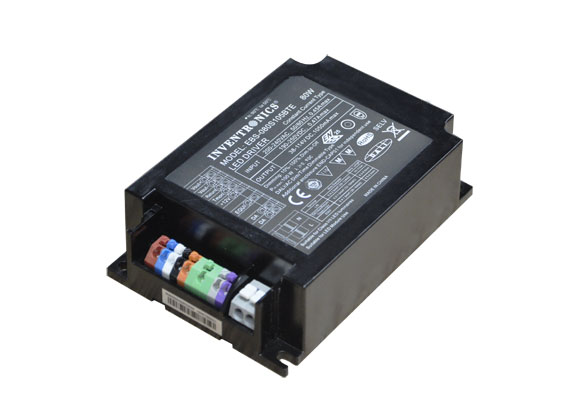

The EBS-080SxxxBTE model is not recommended for new design. It has limited availability and will be sold while supplies last. We recommend the EBS-080SxxxBT2 as a replacement.
- Programmable
- Full Power at a Wide Range of Output Currents
- Dimming Controls:
- DALI, AC DIm, Multiple Timers
- Controls-Ready:
- Always-On Auxiliary Power 12Vdc/200mA
- Dim-to-Off with Low Standby Power
- High Level Surge Protection:
- 6kV DM, 10kV CM
- Thermal Sensing and Protection for LED module
- Output Lumen Compensation
- Suitable for Luminaires with Protection Class I and II
- Built-in Use for Outdoor Applications
- Independent Use for Indoor Applications with Optional Endcap
- 7 Year Warranty
Life Time
120,000 hours @ Case Temperature 75°C
Dimensions
Inches (L x W x H)
4.93 x 3.35 x 1.42
Millimeters (L x W x H)
125 x 85 x 36
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 450 – 700 mA | 530 mA | 176 ~ 305 Vac 190 ~ 250 Vdc |
57 – 178 Vdc | 80 W | EBS-080S070BTE |
| 700 – 1050 mA | 700 mA | 38 – 114 Vdc | EBS-080S105BTE |
|
