- High Efficiency (up to 90%)
- Constant Voltage Output
- No-Load Power < 0.5 W
- Input Surge Protection: DM 4kV, CM 6kV
- All-Around Protection: OCP, OVP, SCP, OTP
- IP67
- SELV Output
- 5 Year Warranty
Life Time
97,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
3.74 x 2.66 x 1.44
Millimeters (L x W x H)
95 x 67.5 x 36.5
Certifications
| Output Voltage | Input Voltage Range | Output Current Range | Max. Output Power | Model Number |
|---|---|---|---|---|
| 24 V |
176 ~ 305 Vac |
0 ~ 3.2 A |
75 W |

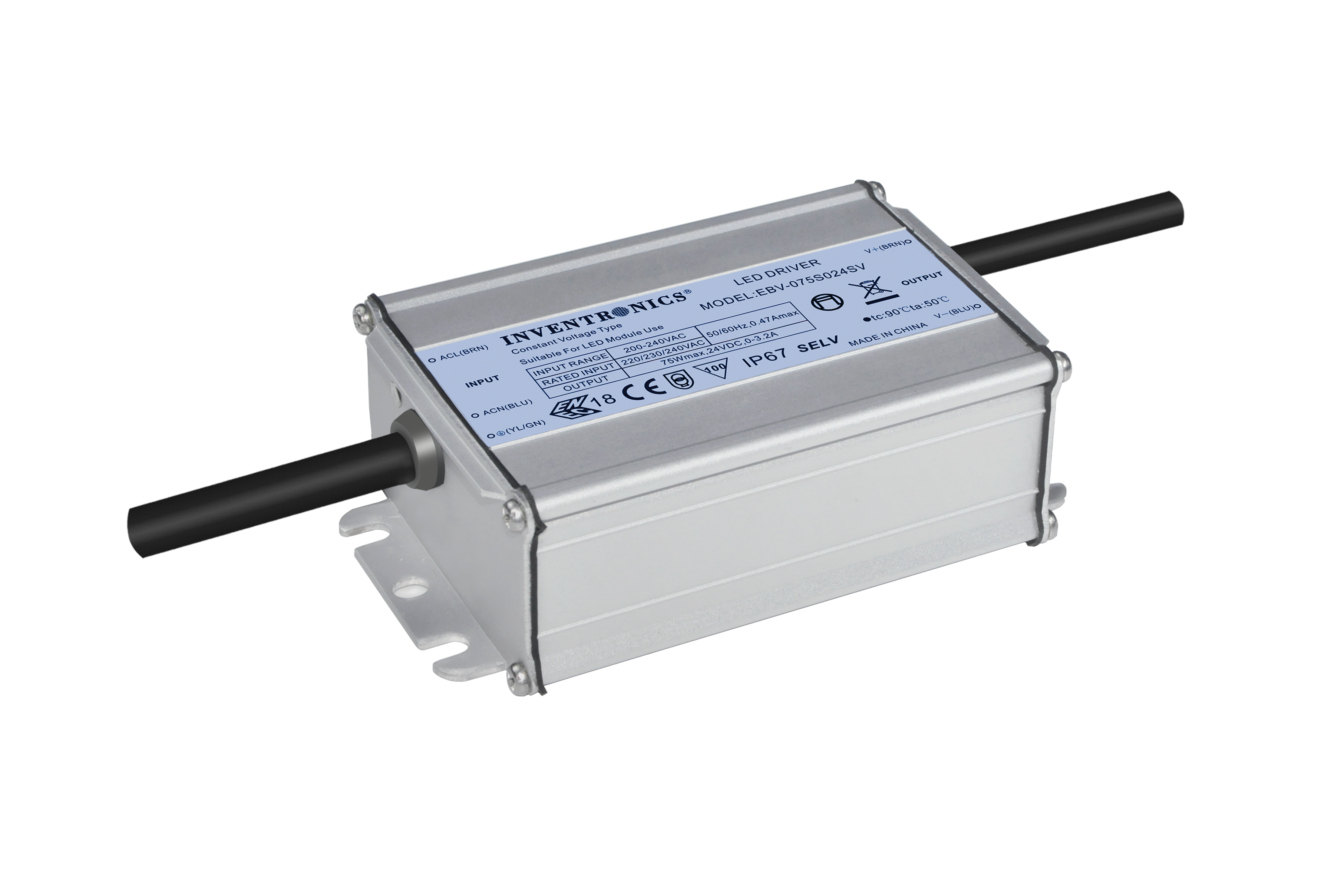

EBV-075S024SV |
| 36 V | 0 ~ 2.1 A | EBV-075S036SV | ||
| 48 V | 0 ~ 1.6 A | EBV-075S048SV |
|
