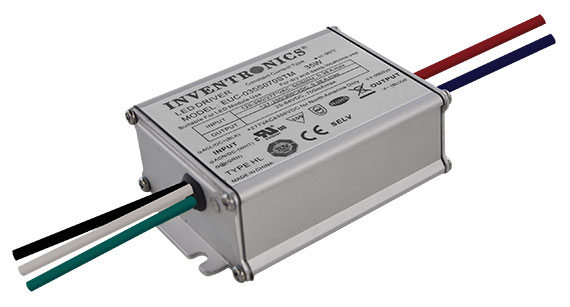

- Compact Metal Housing
- Input Surge Protection:
- 4kV DM, 6kV CM
- Built-in Protection for Unstable Input Lines:
- Input Under Voltage Protection
- Input Over Voltage Protection
- Low Total Harmonic Distortion (THD), 10% Max up to 240 Vac
- Suitable for Built-in Use and Class I Luminaires
- Class 2 and SELV Output Models Available
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
- 5 Year Warranty
Life Time
80,000 hours @ Case Temperature 75°C
Dimensions
Inches (L x W x H)
3.15 x 2.52 x 1.26
Millimeters (L x W x H)
80 x 64 x 32
Certifications
| Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
| 500 mA | 90 ~ 305 Vac | 32 – 64 Vdc | 32W | EUC-035S070STM0004 |
| 700 mA | 25 – 47 Vdc | 33W | EUC-035S105STM0007 | |
| 860 mA | 20 – 41 Vdc | 35W | EUC-035S105STM0004 | |
| 1050 mA | 18 – 33 Vdc | EUC-035S105STM | ||
| Note: Models listed are not all-inclusive. For additional models please contact our sales department. | ||||
|
