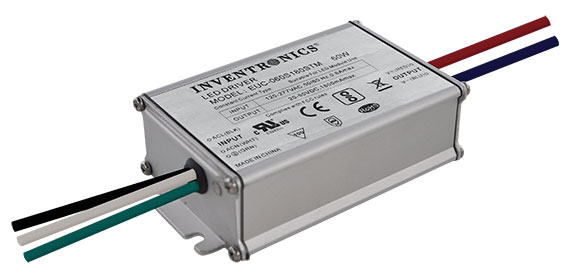

- Compact Metal Housing
- Input Surge Protection:
- 4kV DM, 6kV CM
- Built-in Protection for Unstable Input Lines:
- Input Under Voltage Protection
- Input Over Voltage Protection
- Low Total Harmonic Distortion (THD), 10% Max up to 240 Vac
- Suitable for Built-in Use and Class I Luminaires
- Class 2 and SELV Output
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
- 5 Year Warranty
Life Time
85,800 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
3.74 x 2.52 x 1.26
Millimeters (L x W x H)
95 x 64 x 32
Certifications
| Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|
| 500 mA |
90 ~ 305 Vac |
60 – 120 Vdc |
60 W |
EUC-060S070STM0004 |
| 700 mA | 48 – 86 Vdc | EUC-060S070STM | ||
| 860 mA | 35 – 70 Vdc | EUC-060S105STM0004 | ||
| 1050 mA | 34 – 57 Vdc | EUC-060S105STM | ||
| 1200 mA | 25 – 50 Vdc | EUC-060S180STM0006 | ||
| 1400 mA | 21 – 43 Vdc | EUC-060S180STM0004 | ||
| 1800 mA | 20 – 33 Vdc | EUC-060S180STM | ||
| Note: Models listed are not all-inclusive. For additional models please contact our sales department. | ||||
|
