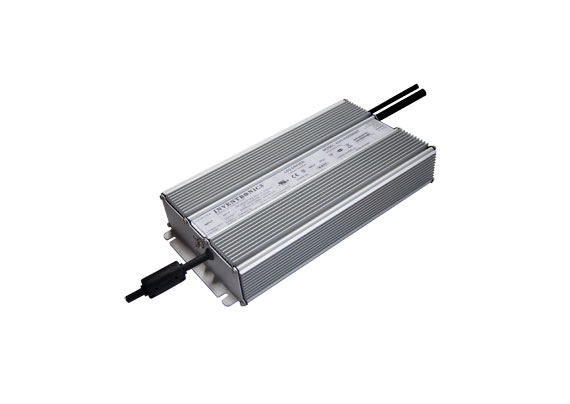

The EUD-600SxxxBT model is not recommended for new design. It has limited availability until the last buy date of 01/31/25. We recommend the EUM-680SxxxBT as a replacement.
- Programmable, Enabling Hundreds of Configurations
- Controls-Ready:
- Always-On Auxiliary Power: 12V, 200mA
- Dim-to-Off with Low Standby Power
- Dimming Controls:
- DALI, Multiple TImers
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- Output Lumen Compensation
- Thermal Sensing and Protection for LED Module
- Class 2 and SELV Output
- IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
- 7 Year Warranty
Life Time
108,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
9.84 x 5.67 x 1.91
Millimeters (L x W x H)
250 x 144 x 48.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 1100 – 1400 mA | 1400 mA |
90 ~ 305 Vac |
214 – 545 Vdc |
600 W |
EUD-600S140BT |
| 2240 – 2800 mA | 2800 mA | 108 – 268 Vdc | EUD-600S280BT | ||
| 3360 – 4200 mA | 4200 mA | 72 – 178 Vdc | EUD-600S420BT | ||
| 4480 – 5600 mA | 5600 mA | 54 – 134 Vdc | EUD-600S560BT | ||
| 5920 – 7400 mA | 7000 mA | 41 – 101 Vdc | EUD-600S740BT | ||
| 7840 – 9800 mA | 9800 mA | 31 – 76 Vdc | EUD-600S980BT |
|
