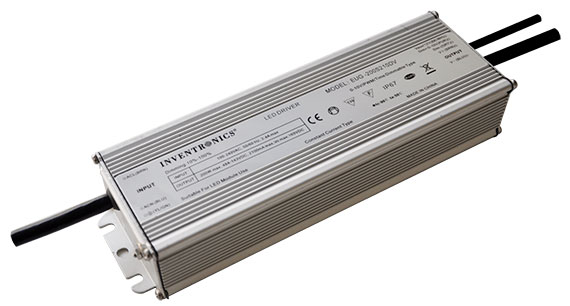

• Ultra High Efficiency (Up to 94%)
  • Full Power at Wide Output Current Range (Constant Power)
  • 0-5V/0-10V/PWM/Timer Dimmable
  • Input Surge Protection: DM 6kV, CM 10kV
  • All-Around Protection: OVP, SCP, OTP
  • IP67
  • SELV Output
  • 7 Year Warranty
Download Data Sheet
Order Here

Life Time

95,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
7.87 x 2.66 x 1.56

Millimeters (L x W x H)
200 x 67.5 x 39.7

Certifications

Independent Gear Logo

Adjustable
Output
Current		 Full-Power Current Range Default Output Current Input Voltage Range Output Voltage Range Max. Output Power Typical
Efficiency		 Typical
Power Factor		 Model Number
120Vac 220Vac
70-1050mA 700-1050mA 700 mA 90~305 Vac/
127~250 Vdc		 95~286Vdc 200 W 94.0% 0.99 0.96 EUG-200S105DV
140-2100mA 1400-2100mA 1400 mA 48~143Vdc 94.0% EUG-200S210DV
245-3500mA 2450-3500mA 2800 mA 29 ~ 82Vdc 93.5% EUG-200S350DV
385-5600mA 3850-5600mA 4900 mA 18 ~ 52Vdc 92.5% EUG-200S560DV
File Name
LED Driver Installation Instructions (Updated March 2015)
Download
LED Driver Installation Guideline (Updated September 2018)
Download
Programming Interface Device Driver Install First (Updated March 2015)
Download
Design-In Guide for Programmable Drivers (Updated September 2018)
Download
Programming Interface Installation Instructions (Updated April 2015)
Download
Programming Interface Operating Instructions (Updated January 2016)
Download
Inventronics Constant Power Programmer Manual Instruction (Updated April 2018)
Download
