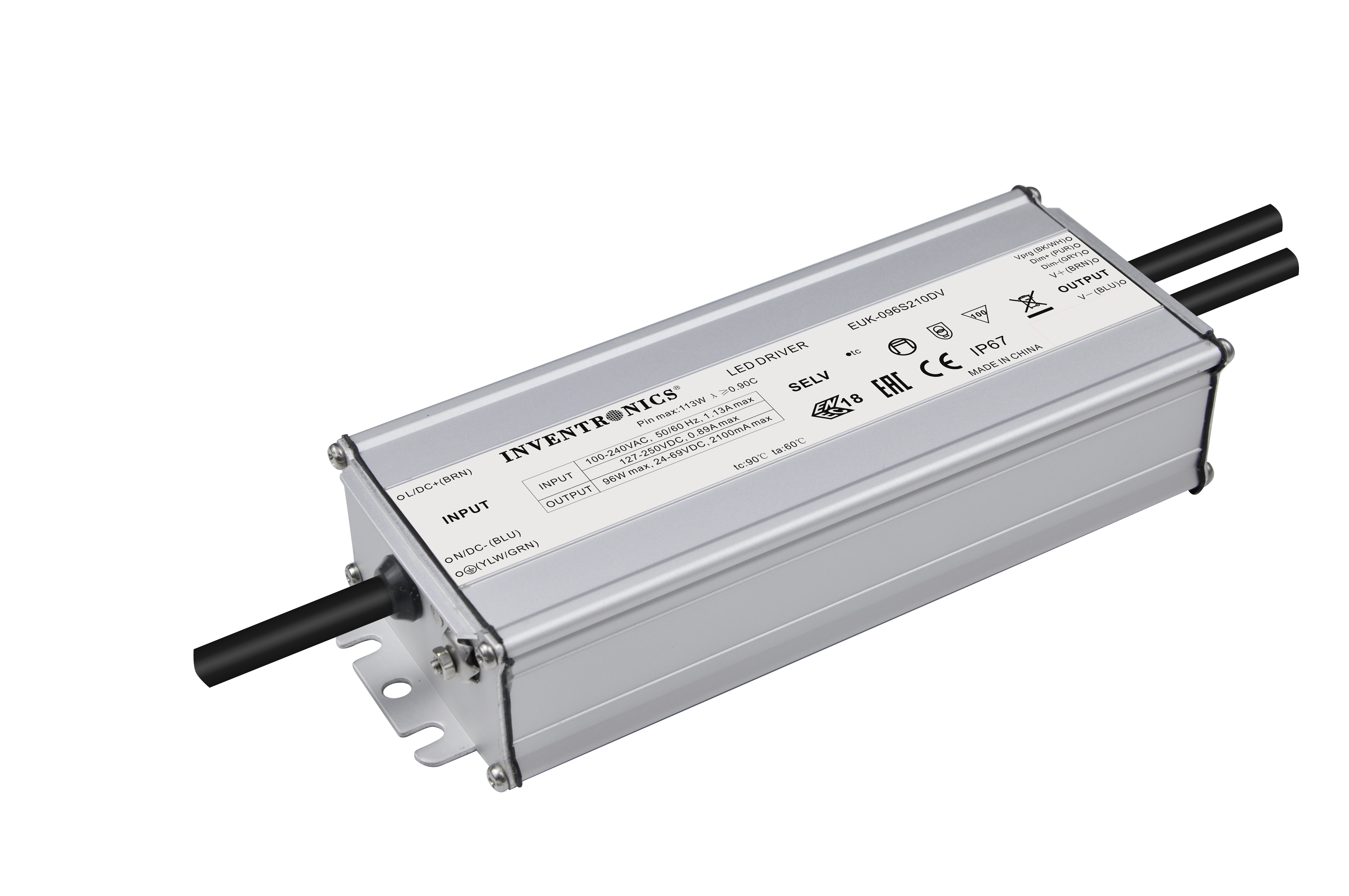

The EUK-096SxxxTV series has been discontinued. Instead, please use the EUK-096SxxxDV series, which is currently available.
- High Efficiency (Up to 92 %)
- Full Power at Wide Output Current Range (Constant Power)
- 0-10V/10V PWM Dimmable (DV models)
- 3 Timer Modes Dimmable (TV models)
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP
- IP67
- SELV Output
- 5 Year Warranty
Life Time
100,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
6.34 x 2.66 x 1.44
Millimeters (L x W x H)
161 x 67.5 x 36.5
Certifications
| Adjustable Output Current Range (mA) |
Full-Power Current Range (mA) |
Default Output Current (mA) |
Input Voltage Range (Vac/Vdc) |
Output Voltage Range (Vdc) |
Max. Output Power (W) |
Typical Efficiency |
Typical Power Factor |
Model Number | |
| 120Vac | 220Vac | ||||||||
| 70-1050 | 700-1050 | 700 | 90~305 Vac/ 127~250 Vdc |
48~137 | 96 | 92.0% | 0.99 | 0.96 | EUK-096S105DV |
| 105-1500 | 1050-1500 | 1050 | 90~305 Vac/ 127~250 Vdc |
32 ~ 91 | 96 | 91.0% | 0.99 | 0.96 | EUK-096S150DV |
| 140-2100 | 1400-2100 | 2100 | 90~305 Vac/ 127~250 Vdc |
24 ~ 69 | 96 | 91.0% | 0.99 | 0.96 | EUK-096S210DV |
| 245-3500 | 2450-3500 | 2800 | 90~305 Vac/ 127~250 Vdc |
14 ~ 39 | 96 | 89.0% | 0.99 | 0.96 | EUK-096S350DV |
|
