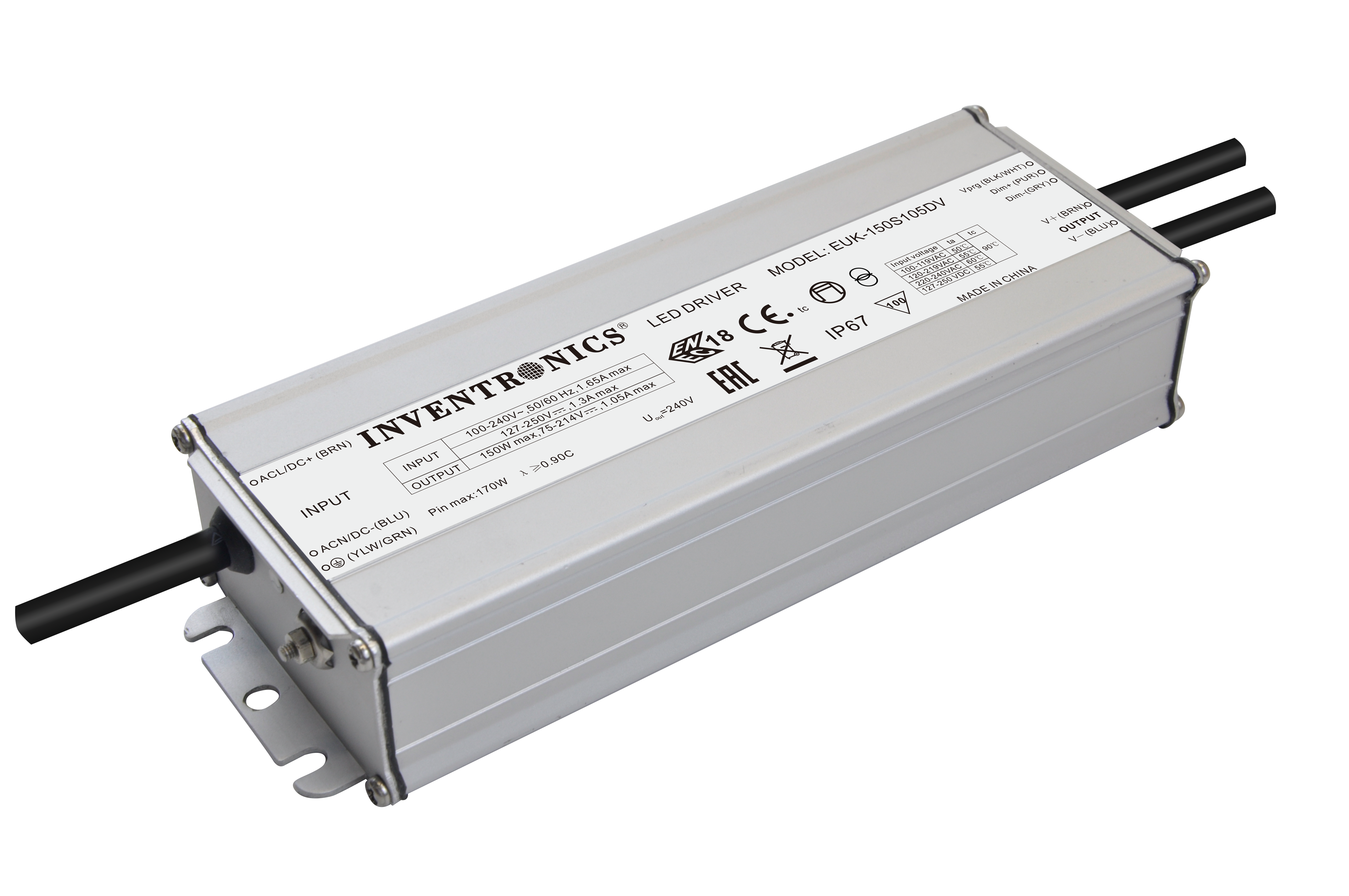

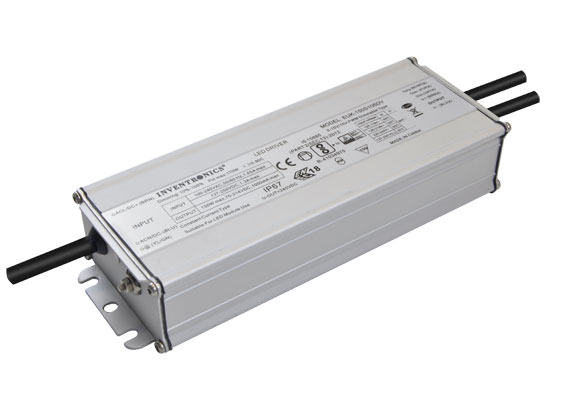

The EUK-150SxxxTV has been discontinued. We recommend the EUK-150SxxxDV version.

  •  High Efficiency (Up to 93%)
  • Full Power at Wide Output Current Range (Constant Power)
  • Isolated 0-10V/10V PWM Dimmable (DV models)
  • 3-Timer-Modes Dimmable (TV models)
  • Input Surge Protection: DM 6kV, CM 10kV
  • All-Around Protection: OVP, SCP, OTP
  • IP67
  • SELV Output
  • 5 Years Warranty
Download Data Sheet
Order Here

Life Time

81,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
6.74 x 2.66 x 1.44

Millimeters (L x W x H)
171 x 67.5 x 36.5

Certifications

Independent Gear Logo

Adjustable
Output
Current
Range		 Full-Power
Current
Range 		 Default
Output
Current		 Input
Voltage
Range		 Output
Voltage
Range		 Max.
Output
Power		 Typical
Efficiency		 Typical
Power Factor		 Model Number
120Vac 220Vac
70-1050mA 700-1050mA 700 mA 90~305 Vac/
127~250 Vdc		 75~214 Vdc 150W 93.0% 0.99 0.96 EUK-150S105DV(TV)
105-1500mA 1050-1500mA 1050 mA 90~305 Vac/
127~250 Vdc		 50~143Vdc 150W 93.0% 0.99 0.96 EUK-150S150DV(TV)
140-2100mA 1400-2100mA 1400 mA 90~305 Vac/
127~250 Vdc		 38~107 Vdc 150W 92.5% 0.99 0.96 EUK-150S210DV(TV)
245-3500mA 2450-3500mA 3150 mA 90~305 Vac/
127~250 Vdc		 22 ~ 61 Vdc 150W 91.5% 0.99 0.96 EUK-150S350DV(TV)
385-5600mA 3850-5600mA 4200 mA 90~305 Vac/
127~250 Vdc		 14 ~ 39 Vdc 150W 90.5% 0.99 0.96 EUK-150S560DV(TV)
