The TT model is not recommended for new design. It has Limited Availability until the Last Buy Date of 12/31/2022
We Recommend the EUM-320SxxxDT as a Replacement
- Programmable, Enabling Hundreds of Configurations
- Constant Power at a Wide Output Current Range
- Dimming Controls:
- DT: Isolated 0-10V, 10V PWM
- TT: Multiple Timers
- Input Surge Protection:
- 6kV DM, 10kV CM
- SELV Output
- UL Dry, Damp, Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous Location
- 5 Year Warranty
Life Time
86,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
8.82 x 3.15 x 1.57
Millimeters (L x W x H)
224 x 80 x 39.7
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 1050 – 1500 mA | 1400 mA | 90 ~ 305 Vac 127 ~ 300 Vdc |

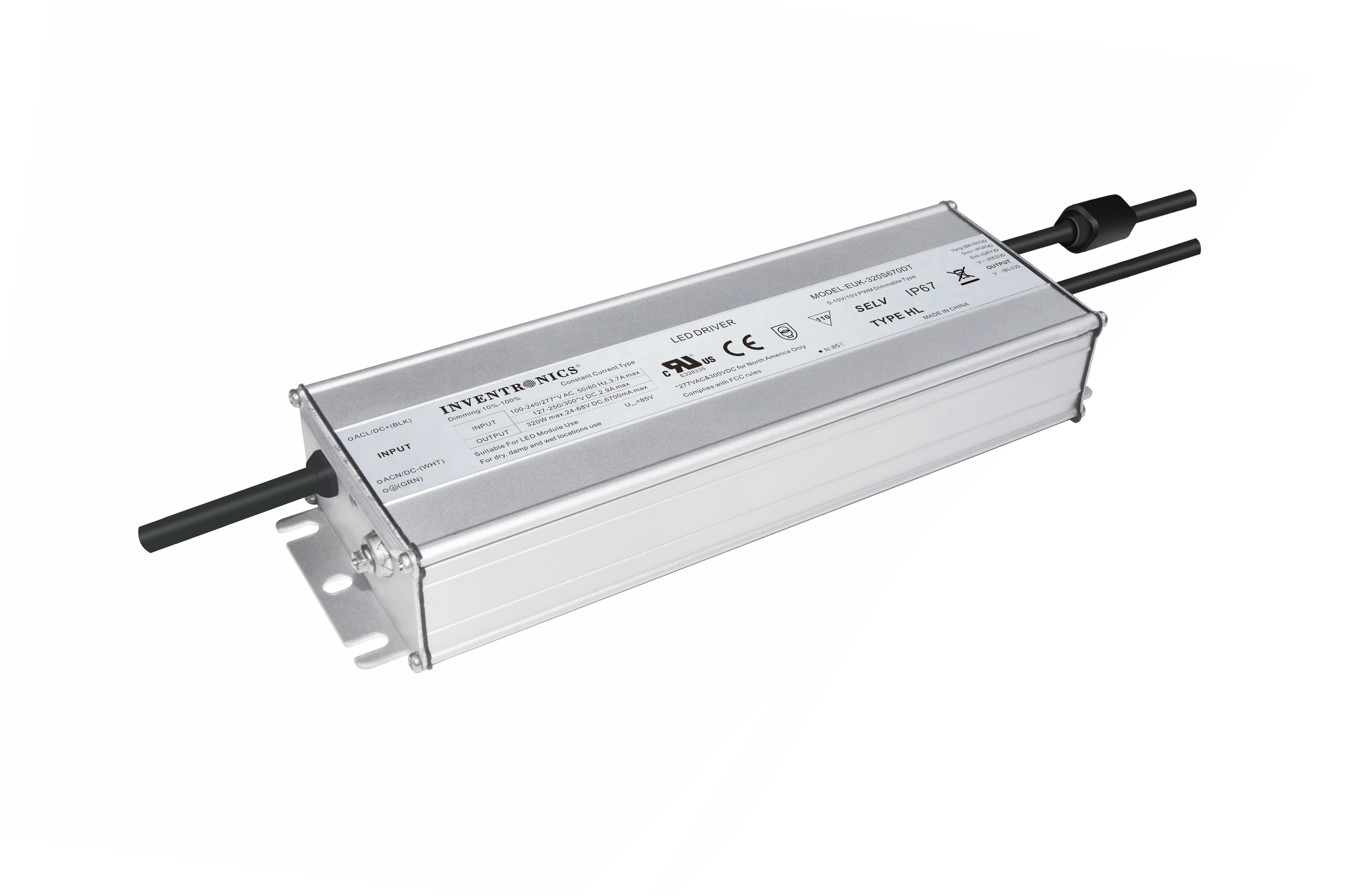

107 – 305 Vdc | 320 W | EUK-320S150DT(TT) |
| 1540 – 2200 mA | 2100 mA | 73 – 208 Vdc | EUK-320S220DT(TT) | ||
| 2240 – 3200 mA | 2800 mA | 50 – 143 Vdc | EUK-320S320DT(TT) | ||
| 3220 – 4600 mA | 4200 mA | 35 – 100 Vdc | EUK-320S460DT(TT) | ||
| 4690 – 6700 mA | 6700 mA | 24 – 68 Vdc | EUK-320S670DT(TT) |
|
File Name
|
|---|
|
LED Driver Installation Instructions (Updated March 2015)
|
|
LED Driver Installation Guidelines (Updated September 2018)
|
|
Programming Interface Operating Instructions (Updated January 2016)
|
|
Constant Power Programmer Manual Instruction (Updated April 2018)
|
