- DALI-2 D4i Certified
- Offers Intra-Luminaire Solutions and Health Monitoring
- Integrated 16Vdc Bus Power Supply based on DALI-2
- Integrated AC Power Monitoring with High Accuracy up to ±1%
- Wireless Programming via Near Field Communication (NFC)
- Compatible with Zhaga Book 24 Programmers
- Dimming Controls:
- Multiple Timers
- Controls-Ready
- Always-On Auxiliary Power: 24Vdc, 125mA, 3W (Transient Peak Power up to 10W)
- Dim-to-Off
- Global Cable Design to Reduce SKUs (with UL)
- Optimized, More Compact Form Factor
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- End-of-Life Indicator
- Thermal Sensing and Protection for LED Module
- Simplified Design for Easier Hi-Pot Testing
- Output Lumen Compensation
- SELV Output Models Available

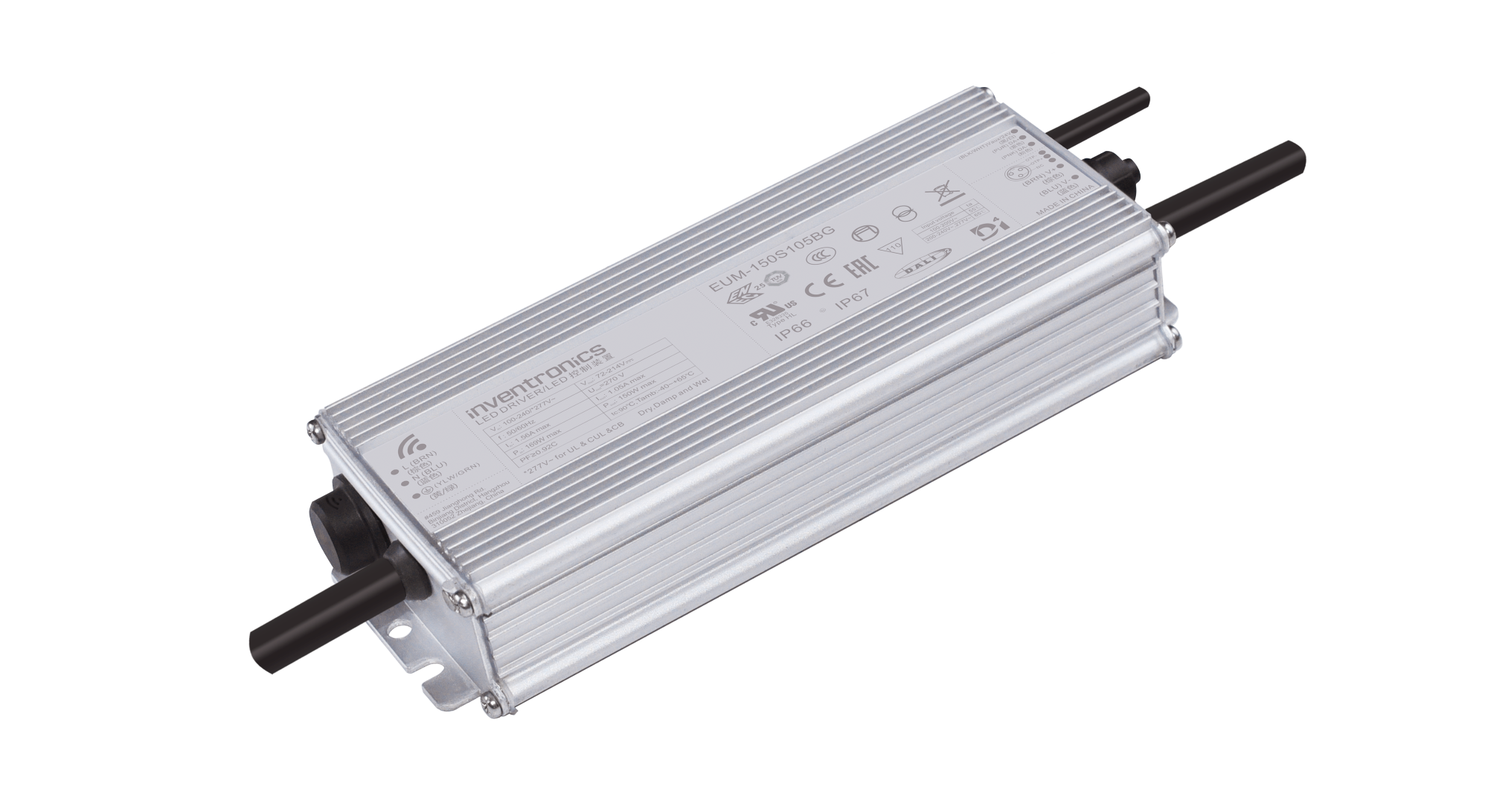

- EUM-150SxxxBG Models: Global Cable to Reduce Inventory SKUs
- EUM-150SxxxBB Models: BIS Certified
- IP66 and IP67 and UL Dry, Damp, Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous
- 7 Year Warranty
Life Time
104,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
6.34 x 2.66 x 1.44
Millimeters (L x W x H)
161 x 67.5 x 36.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 700 – 1050 mA | 700 mA | 90 ~ 305 Vac 127 – 300 Vdc |
72 – 214 Vdc | 150 W | EUM-150S105BG |
| 1050 – 1500 mA | 1050 mA | 50 – 143 Vdc | EUM-150S150BG | ||
| 1400 – 2100 mA | 1400 mA | 36 – 107 Vdc | EUM-150S210BG | ||
| 2800 – 4200 mA | 3150 mA | 18 – 54 Vdc | EUM-150S420BG | ||
| Note: To order BIS approved models, please use suffix “BB” in place of “BG” (Ex: EUM-150S105BB) | |||||
|
