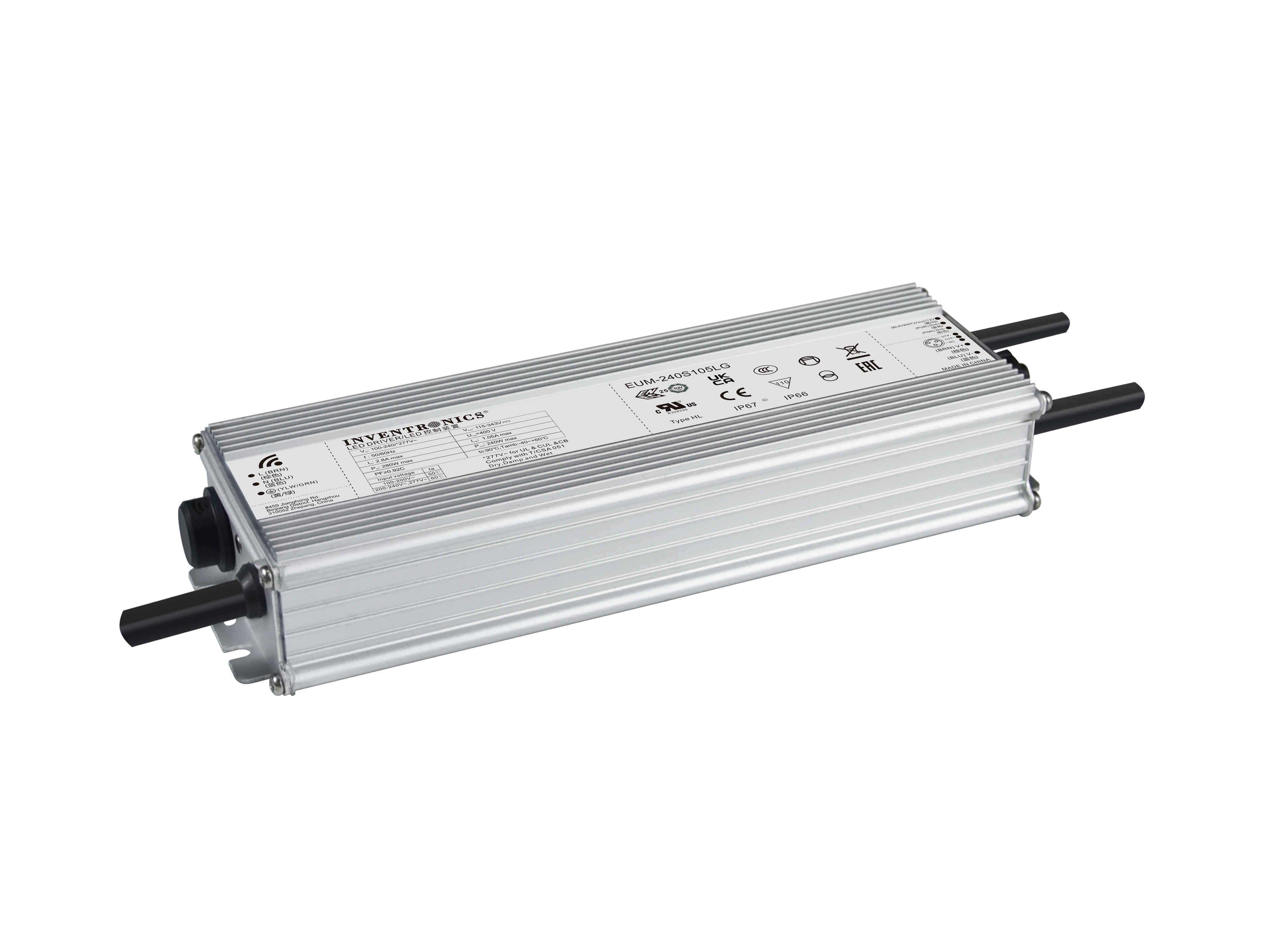

- Full-Power at a Wide Output Current Range
- Isolated Dimming Controls:
- 0-10V, PWM, Multiple Timers
- Controls-Ready
- Always-On Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W)
- Dim-to-Off
- Inventronics Proprietary Digital Dimming Health Monitoring
- UART Based Communication Protocol
- Global Cable Design to Reduce SKUs (with UL)
- Optimized, More Compact Form Factor
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- End-of-Life Indicator
- Simplified Design for Easier Hi-Pot Testing
- Output Lumen Compensation
- SELV Output Models Available
- IP66 and IP67 and UL Dry, Damp, Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous
- 5 Year Warranty
Life Time
101,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
7.91 x 2.66 x 1.52
Millimeters (L x W x H)
201 x 67.5 x 38.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 700 – 1050 mA | 700 mA | 90 ~ 305 Vac 127 – 300 Vdc |
115 – 343 Vdc | 240 W | EUM-240S105MG |
| 1050 – 1500 mA | 1050 mA | 80 – 229 Vdc | EUM-240S150MG | ||
| 2150 – 3500 mA | 2150 mA | 35 – 111 Vdc | EUM-240S350MG | ||
| 4200 – 6700 mA | 4900 mA | 18 – 57 Vdc | EUM-240S670MG |
|
File Name
|
|---|
|
LED Driver Installation Instructions (Updated September 2018)
|
|
Programming Interface Device Driver Install First (Updated March 2015)
|
|
Design-in Guide for Programming Drivers (Updated September 2018)
|
|
Inventronics Constant Power Programmer Manual Instruction (Updated December 2020)
|
