This Series is Not Recommended for New Design
We Recommend our EUM-075SxxxSG as a Replacement
- High Efficiency (Up to 91.0%)
- Full Power at Wide Output Current Range (Constant Power)

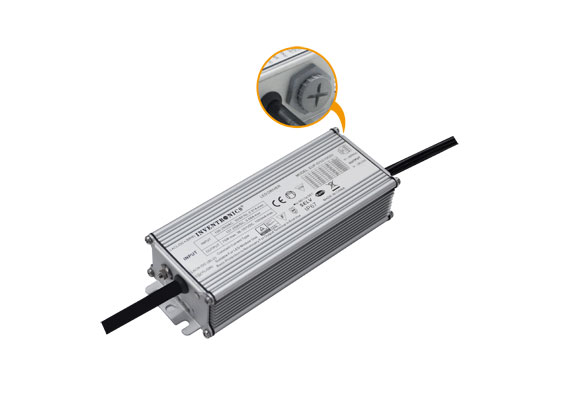

- Adjustable Output Current (AOC) with Dip-switch
- Non-dimming Control
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP
- IP67
- SELV Output
- 5 Year Warranty
Life Time
79,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
5.71 x 2.37 x 1.44
Millimeters (L x W x H)
145 x 60 x 36.5
Certifications
| Adjustable Output Current Range |
Full-Power Current Range |
Default Output Current |
Input Voltage Range |
Output Voltage Range |
Max. Output Power |
Typical Efficiency |
Typical Power Factor |
Model Number | |
| 120Vac | 220Vac | ||||||||
| 350-700mA | 450-700mA | 550 mA | 90~305 Vac/ 127~250 Vdc |
54~167Vdc | 75 W | 91.0% | 0.98 | 0.96 | EUP-075S070SV |
| 700-1050mA | 700-1050mA | 700 mA | 90~305 Vac/ 127~250 Vdc |
36~107Vdc | 75 W | 91.0% | 0.98 | 0.96 | EUP-075S105SV |
| 1050-1750mA | 1190-1750mA | 1400 mA | 90~305 Vac/ 127~250 Vdc |
22 ~ 63Vdc | 75 W | 90.5% | 0.98 | 0.96 | EUP-075S175SV |
| 1700-2800mA | 1900-2800mA | 2100 mA | 90~305 Vac/ 127~250 Vdc |
14 ~ 39Vdc | 75 W | 89.5% | 0.98 | 0.96 | EUP-075S280SV |
|
