• High efficiency (Up to 90.5%)
  • Isolated 0-10V dimmable (DTA models) / Non-dimmable (STA models)
  • Deep dimming down to 0.1%
  • Constant voltage PWM output frequency up to 1.5kHz
  • Dim-to-off with standby power ≤ 0.5W
  • Input surge protection: DM 4kV, CM 6kV
  • All-around protection: OCP, OVP, SCP, OTP
  • IP67 and UL Dry/Damp/Wet location
  • LVLE and SELV output
  • UL Class P type
  • TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) location
  • 5 Year Warranty



Download Data Sheet
Order Here

Life Time

89,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
7.08 x 2.66 x 1.44

Millimeters (L x W x H)
180 x 67.5 x 36.5

Certifications

Output Voltage Input Voltage Range Output Current Range Max. Output Power Typical Efficiency Typical Power Factor (120Vac) Typical Power Factor (220Vac) Model Number

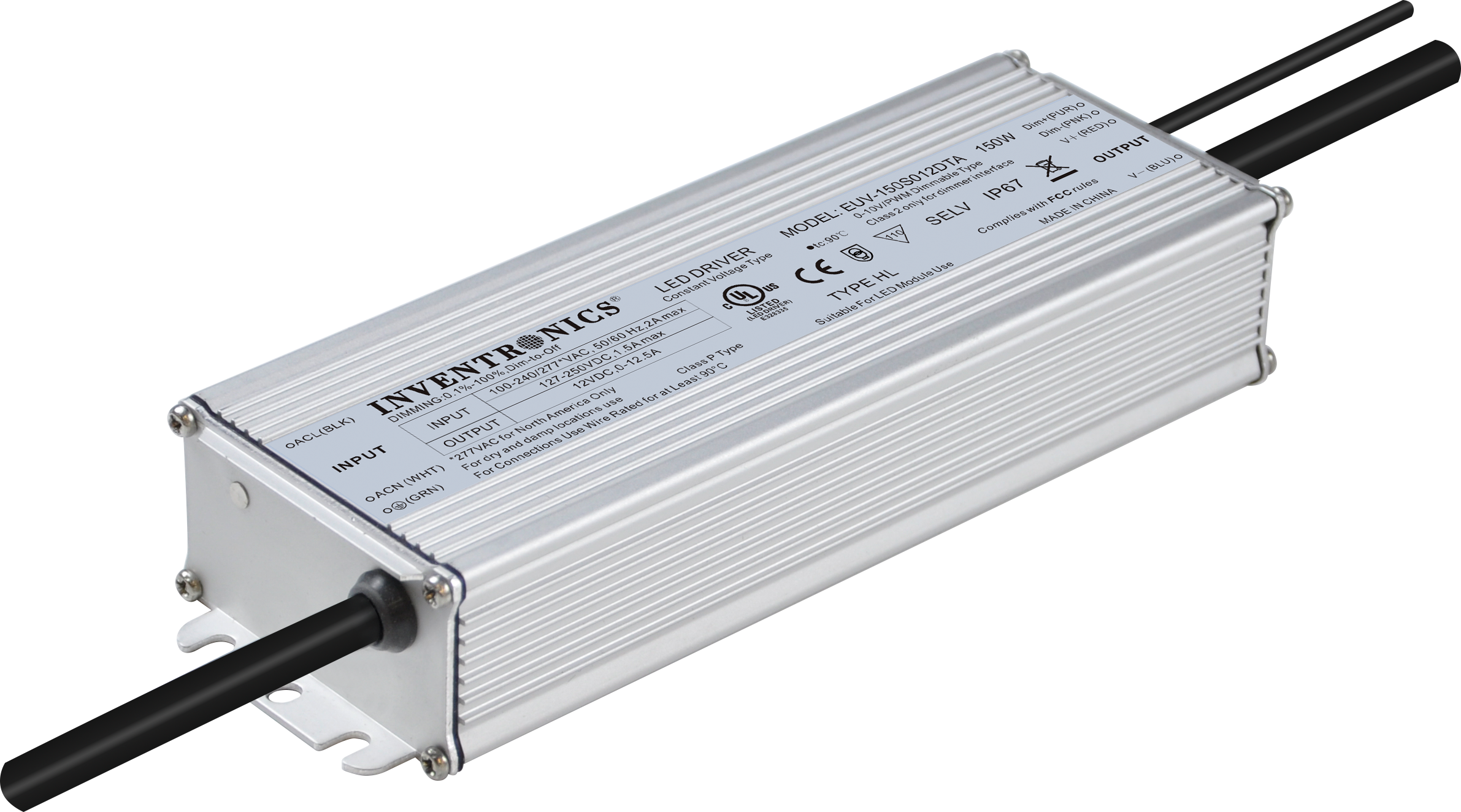

12V 90-305 Vac / 127-250 Vdc 0 – 12.5A 150W 90.0% 0.99 0.96 EUV-150S012DTA(STA)
24V 90-305 Vac / 127-250 Vdc 0 – 6.25A 150W 90.5% 0.99 0.96 EUV-150S024DTA(STA)
File Name
LED Driver Installation Instructions (Updated March 2015)
Download
LED Driver Installation Guidelines (Updated September 2018)
Download
