- Adjust Color Temperature Continuously
- Adjust Intensity and Color Temperature Separately
- 40W Max per Channel with Total 40W Load
- Programmable, Full Power at a Wide Output Current
- Isolated Dimming Controls:
- 1-5V, 1-10V, 10V PWM, Multiple Timers
- 1% Minimum per Channel with Total 10% Dimming
- Flicker-Free
- Built-in Surge Protection:
- 4kV DM, 6kV CM
- Output Lumen Compensation
- SELV Output Models Available
- Type HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
- IP66 Rated with UL Dry, Damp Location
- 5 Year Warranty
Life Time
120,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
4.92 x 2.52 x 1.44
Millimeters (L x W x H)
125 x 64 x 36.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 700 – 1050 mA | 700 mA | 90 ~ 305 Vac 127 – 300 Vdc |

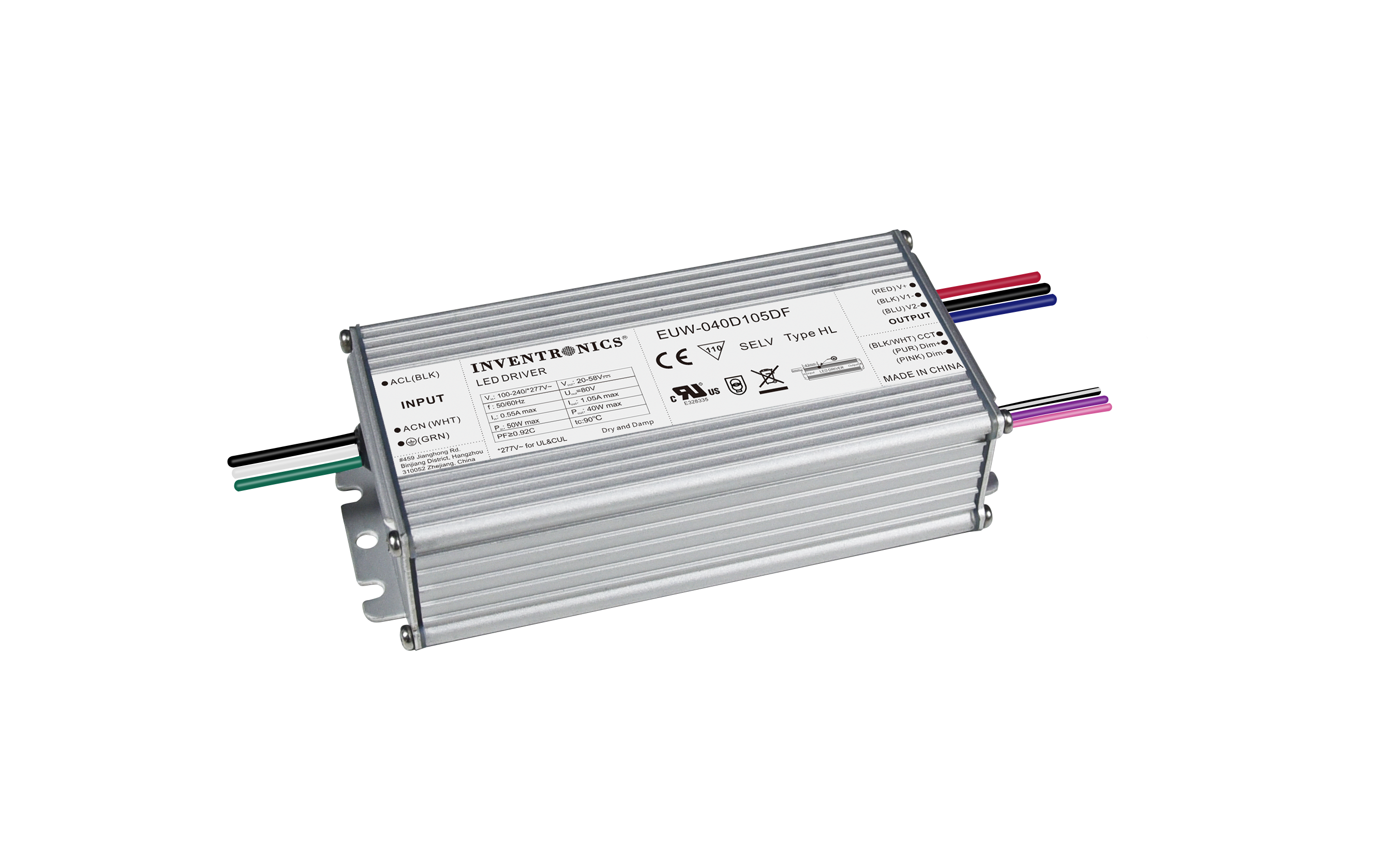

20 – 58 Vdc | 40 W | EUW-040D105DF |
|
