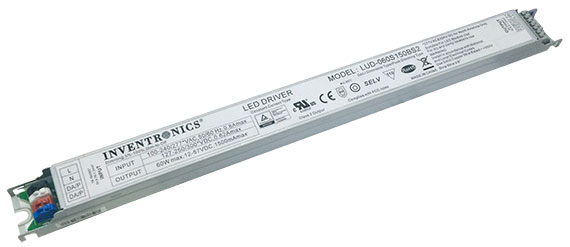

The LUD-060SxxxBS2 model is not recommended for new design. It has limited availability and will be sold while supplies last.
- Programmable, Enabling Hundreds of Configurations
- Controls-Ready:
- Always-On Auxiliary Power: 12V, 200mA
- Dim-to-Off with Low Standby Power
- Dimming Controls:
- Dimmable to 5% DALI and Push Dimming
- Flicker-Free
- Thermal Sensing and Protection for the LED Module
- Output Lumen Compensation
- Class II, SELV and Class 2 Outputs
- Suitable for Built-in Use
- 5 Year Warranty
Life Time
107,000 hours @ Case Temperature 60°C
Dimensions
Inches (L x W x H)
14.88 x 1.18 x 0.83
Millimeters (L x W x H)
378 x 30 x 21
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 385 – 550 mA | 530 mA |
90 ~ 305 Vac |
31 – 156 Vdc |
60 W |
LUD-060S055BS2 |
| 546 – 780 mA | 700 mA | 22 – 110 Vdc | LUD-060S078BS2 | ||
| 770 – 1100 mA | 1050 mA | 16 – 78 Vdc | LUD-060S110BS2 | ||
| 1050 – 1500 mA | 1400 mA | 12 – 57 Vdc | LUD-060S150BS2 | ||
| 1470 – 2100 mA | 2100 mA | 8 – 40 Vdc | LUD-060S210BS2 |
|
