- Non-Isolated Class I Driver
- No Afterglow
- Dim-to-Off with Standby Power ≤ 0.5W @ 230Vac
- Ultra High Efficiency (Up to 96%)
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with NFC
- DALI-2 and D4i Certified & DMX-RDM & 0-10V & PWM & Resistor & 3-Timer-Modes Dimmable
- Adjustable Dimming Curve
- INV Digital Dimming, UART Based Communication Protocol
- Hold Time Adjustable
- Fade Time Adjustable
- Always-on Auxiliary Power: 12Vdc, 250mA (Except DMX-RDM Mode)
- Minimum Dimming Level Supports 0.1% for DALI-2 and DMX-RDM
- Minimum Dimming Level Supports 1% for 0-10V, PWM, Resistor, and Digital Dimming
- Controls up to 44 fps
- Integrated Power Metering with High Accuracy up to ±1%
- Low Inrush Current
- Output Lumen Compensation
- End-of-Life Indicator
- Input Surge Protection: DM 10kV, CM 10kV
- All-Around Protection: OPP, IOVP, IUVP, OVP, SCP, OTP
- IP66/IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
- 5 Years Warranty
Life Time
120,000 Hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
9.65 × 3.01 × 1.52
Millimeters (L x W x H)
245 × 76.5 × 38.5
Certifications
|
Adjustable Output Current Range (mA) |
Full-Power Current Range (mA) |
Default Output Current (mA) |
Output Voltage Range (Vdc) |
Max. Output Power (W) |
Typical Efficiency |
Typical Power Factor |
Model Number |
|
|
220Vac |
480Vac |
|||||||
|
1-2000 |
1000-2000 |
2000 |
150-500 |
500 |
96.0% |
0.99 |
0.95 |

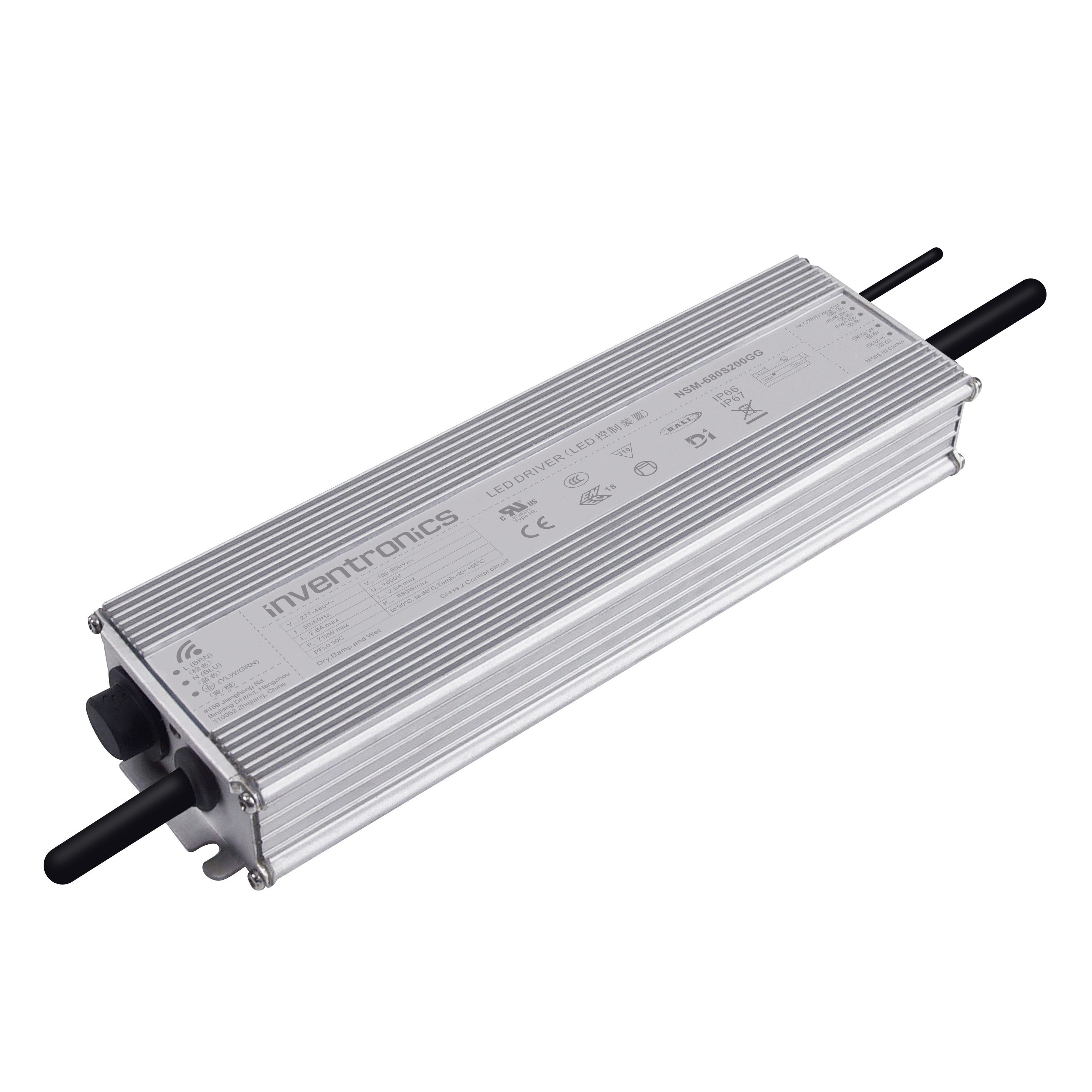

NFM-500S200GG |
